(C₂H₂) Passive Laser Online Monitoring System

Technical Consulting
Technical Advisory Services
In order to better understand the needs of the enterprise, I hope you fill in the following information form, and the professional technical sales of Hanhai Technology will contact you in time after submission.

Institution Name *

Purchase quantity

Needs and suggestions

Basic Information *

Product Description

(Acetylene) Passive Laser Online Monitoring System As an industrial-grade high-tech gas monitoring device equipped with Hanhai's proprietary passive detection core technology, it is specially designed for acetylene leakage monitoring in high-risk scenarios and multi-field applications. Adhering to the core design philosophy of "passive intrinsic safety, accurate real-time early warning, and complex scenario adaptability", the product innovatively adopts a "host + optical fiber + detection terminal" architecture. It thoroughly breaks through the power supply limitations and high-risk environment deployment bottlenecks of traditional monitoring equipment, providing a full-cycle safety protection solution for acetylene leakage in scenarios such as industrial production, storage and transportation, while meeting the precise monitoring needs of multiple fields.

The system's proprietary passive technology ensures intrinsic safety. The detection terminal features a pure optical design with no electrical components, eliminating the risk of electric sparks. It is perfectly suited to the highly flammable and explosive characteristics of acetylene, and can be directly deployed in explosion-proof areas to eradicate potential safety hazards from the source. The terminal is corrosion-resistant, pressure-resistant and anti-aging, and can be installed in scenarios such as above-ground tank farms and reaction workshops, withstanding complex working conditions including underground confined spaces, high humidity, salt spray, and extreme temperatures. The optical fiber transmission distance can reach several kilometers, and a single host can connect to dozens of terminals, enabling long-distance, large-scale continuous coverage monitoring and significantly reducing engineering and maintenance costs. The system conducts 24/7 uninterrupted online monitoring with real-time data displayed on the host. When gas concentrations exceed the standard limits, it immediately triggers audible and visual alarms. It can also interface with enterprise intelligent safety systems, forming a closed-loop full-process management of "monitoring - early warning - disposal".

  • Independent research and development

  • Active monitoring

  • Maintenance-free

  • High sensitivity

  • No false positives

  • Zero false negatives

  • Strong anti-interference

    • Application Scenarios

    1. Metal Processing Scenarios: Suitable for metal welding and cutting workshops in industries such as automobile manufacturing, ship repair, and steel structure fabrication, as well as thermal spraying operation areas. It monitors acetylene leakage from gas cylinders and delivery pipelines to prevent explosions caused by open flames during operation.

    2. Chemical Synthesis Scenarios: Deployable around calcium carbide-based acetylene production workshops, vinyl chloride and vinyl acetate synthesis units; also applicable to reaction zones for new material synthesis including carbon nanotubes and carbon fibers. It can not only detect raw material acetylene leakage, but also optimize production processes by controlling acetylene concentration.

    3. Power Operation and Maintenance Scenarios: Installed near power station equipment such as oil-immersed transformers and reactors. It provides real-time early warning of equipment faults by monitoring acetylene content dissolved in equipment oil, ensuring the stable operation of the power system.

    4. Storage and Loading/Unloading Scenarios: Suitable for acetylene cylinder storage warehouses and gas filling stations; also deployable at the loading and unloading areas of acetylene transportation vehicles. It monitors leakage risks during cylinder filling, transfer and storage in real time, and can link with equipment to trigger emergency measures.

    5. Mining and Underground Scenarios: Used in goafs of coal mines to monitor gases and determine coal spontaneous combustion; also installable in underground utility tunnels and pipelines for acetylene transportation, addressing the problem of poor ventilation and gas accumulation in confined spaces and preventing explosion hazards.

    6. Scientific Research and Special Scenarios: Suitable for chemical laboratories to ensure the safe use of acetylene in experiments such as organic synthesis.

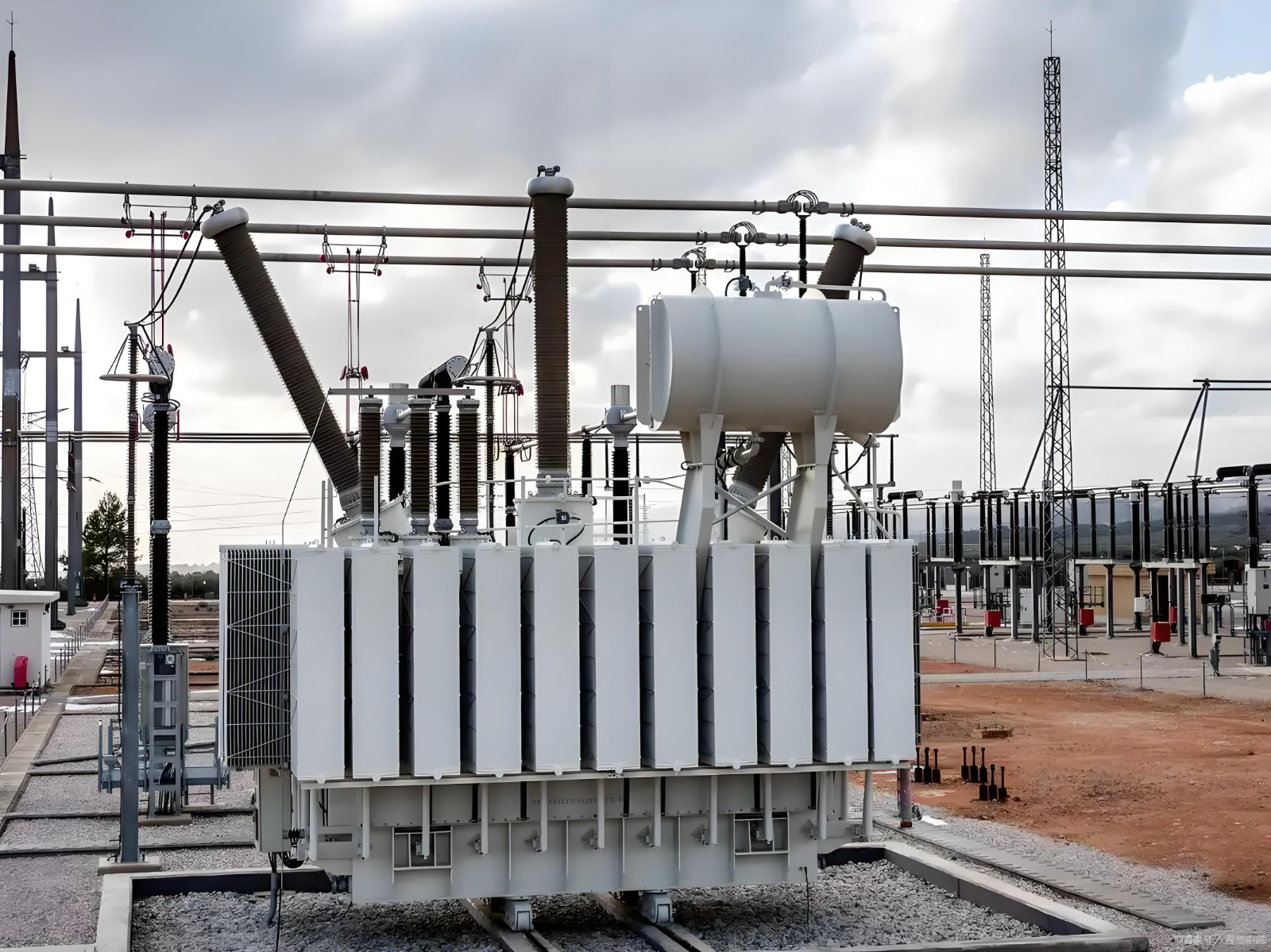

    power station

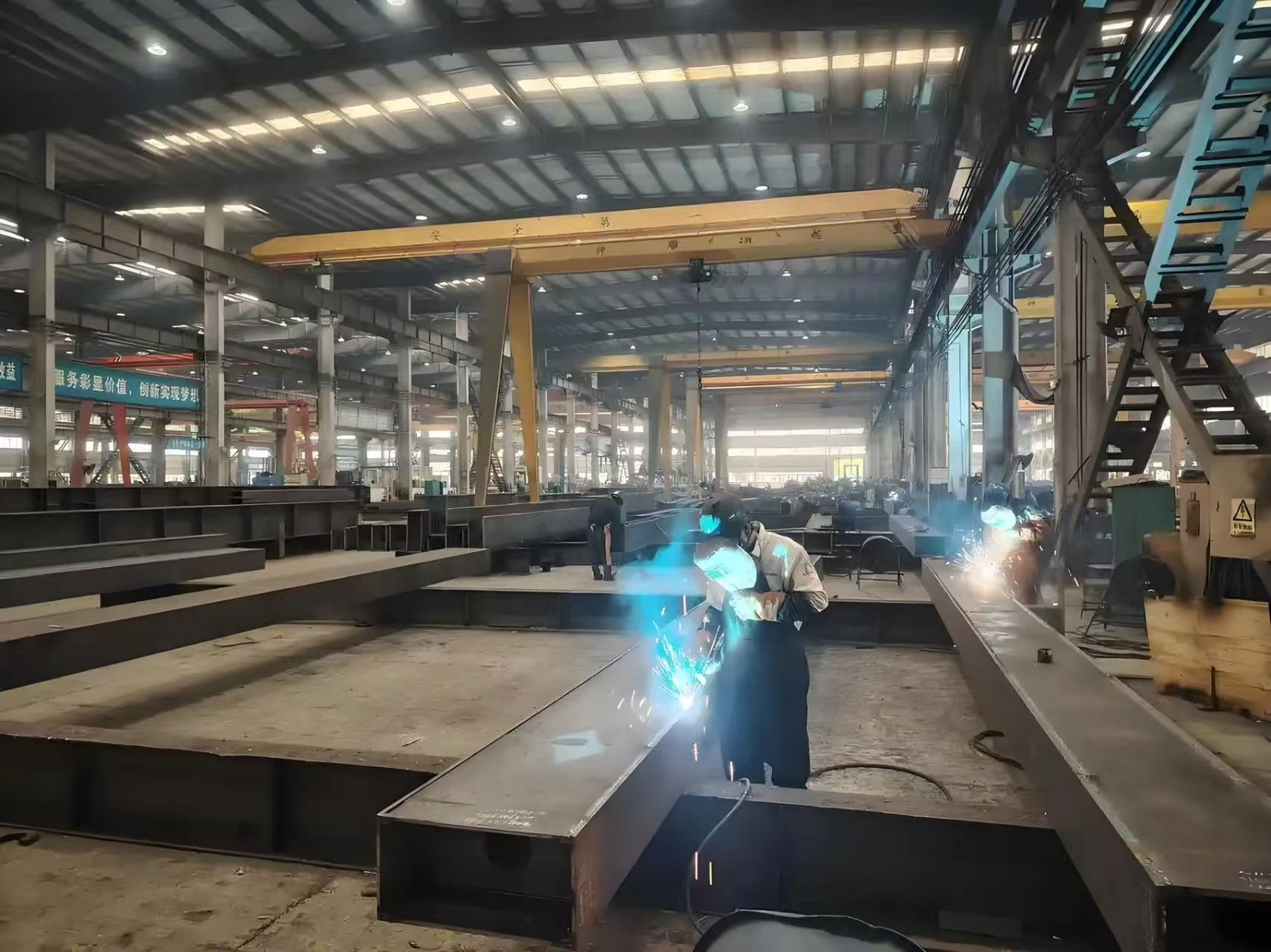

    steel structure manufacturing

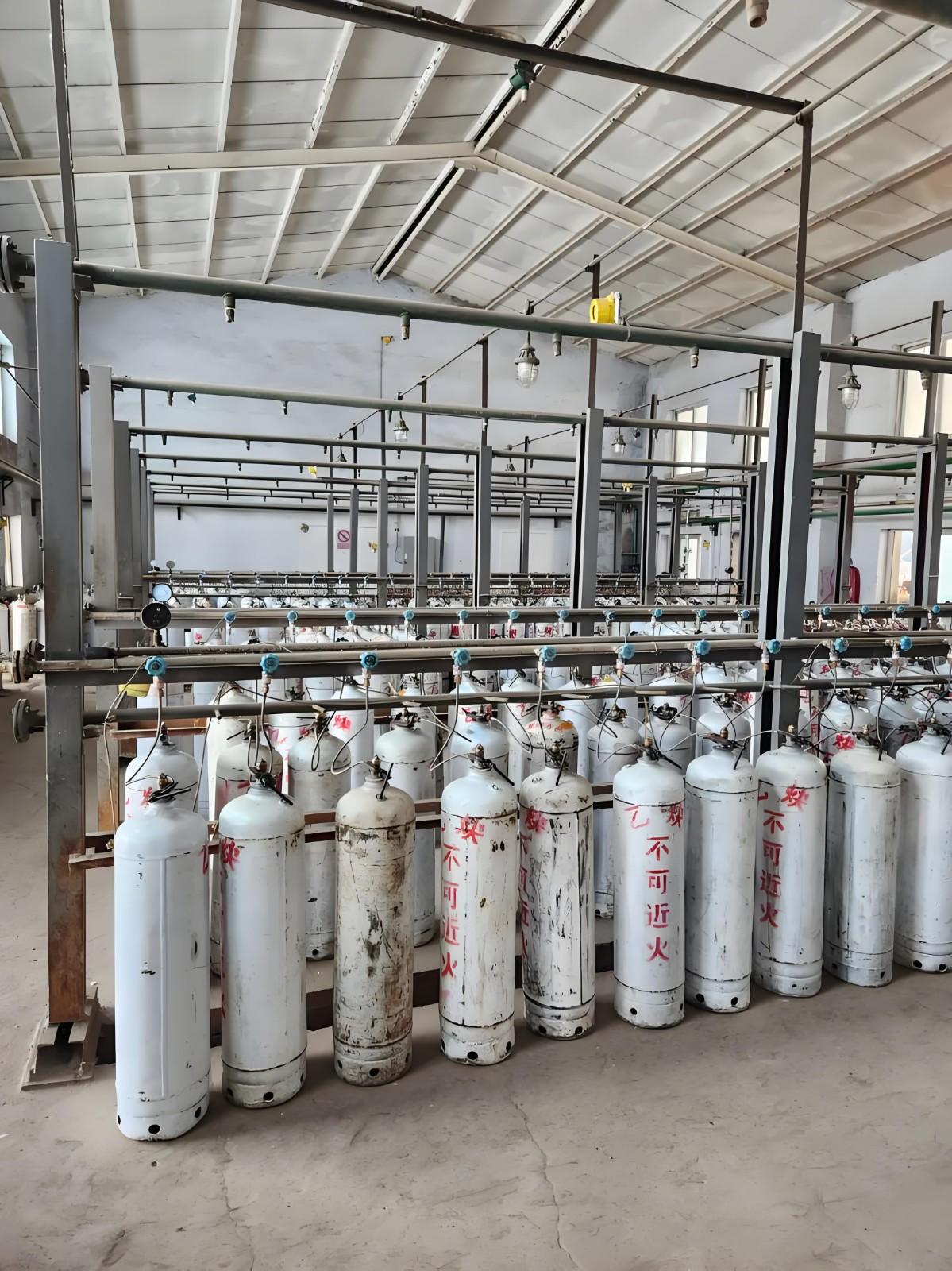

    acetylene storage

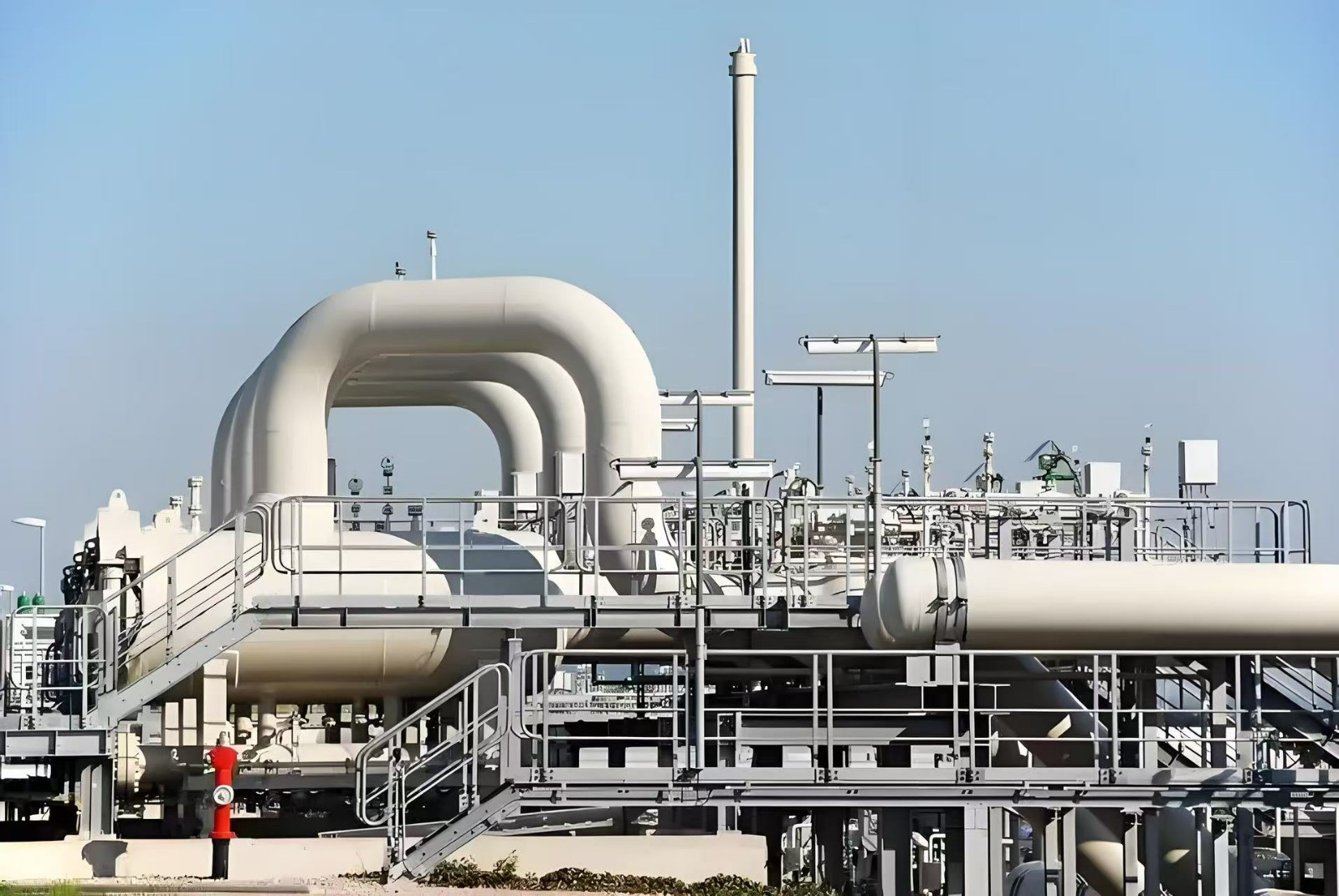

    acetylene chemical industry
    acetylene production
    The main function

    No power supply is required at the monitoring site, which is connected via optical fibers. The monitoring platform receives and processes information from each optical sensing terminal on-site in real time, ensuring more stable monitoring performance.

    It subverts the traditional system composition mode and adopts a digital design from optical sensing terminals to the control system. The simplified system structure facilitates easier installation and can meet more application needs of customers.

    The optical sensing terminals are purely optical components with non-loss characteristics. They feature high reliability and require no calibration.

    Each monitoring channel has a response time of only 10 seconds, with a transmission distance of up to 20 kilometers. It can accurately detect ppm-level trace gas leaks, truly achieving preventive monitoring of gas leakage.

    The ultra-long service life of the entire system significantly reduces the equipment operation costs throughout the life cycle.
